Chapter 10

一、长宽表的变形

NotebookPyCharm (pythonProject)67 cells

In [1]python · cell 2

python

import numpy as np
import pandas as pd

一、长宽表的变形

什么是长表？什么是宽表？这个概念是对于某一个特征而言的。例如：一个表中把性别存储在某一个列中，那么它就是关于性别的长表；如果把性别作为列名，列中的元素是某一其他的相关特征数值，那么这个表是关于性别的宽表。下面的两张表就分别是关于性别的长表和宽表：

In [2]python · cell 4

python

pd.DataFrame({'Gender':['F','F','M','M'], 'Height':[163, 160, 175, 180]})

Output

  Gender  Height
0      F     163
1      F     160
2      M     175
3      M     180

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead th { text-align: right; }

	Gender	Height
0	F	163
1	F	160
2	M	175
3	M	180

In [3]python · cell 5

python

pd.DataFrame({'Height: F':[163, 160], 'Height: M':[175, 180]})

Output

   Height: F  Height: M
0        163        175
1        160        180

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead th { text-align: right; }

	Height: F	Height: M
0	163	175
1	160	180

显然这两张表从信息上是完全等价的，它们包含相同的身高统计数值，只是这些数值的呈现方式不同，而其呈现方式主要又与性别一列选择的布局模式有关，即到底是以 $\color{red}{long}$ 的状态存储还是以 $\color{red}{wide}$ 的状态存储。因此，pandas针对此类长宽表的变形操作设计了一些有关的变形函数。

1. pivot

pivot是一种典型的长表变宽表的函数，首先来看一个例子：下表存储了张三和李四的语文和数学分数，现在想要把语文和数学分数作为列来展示。

In [4]python · cell 7

python

df = pd.DataFrame({'Class':[1,1,2,2],
                   'Name':['San Zhang','San Zhang','Si Li','Si Li'],
                   'Subject':['Chinese','Math','Chinese','Math'],
                   'Grade':[80,75,90,85]})
df

Output

   Class       Name  Subject  Grade
0      1  San Zhang  Chinese     80
1      1  San Zhang     Math     75
2      2      Si Li  Chinese     90
3      2      Si Li     Math     85

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead th { text-align: right; }

	Class	Name	Subject	Grade
0	1	San Zhang	Chinese	80
1	1	San Zhang	Math	75
2	2	Si Li	Chinese	90
3	2	Si Li	Math	85

对于一个基本的长变宽操作而言，最重要的有三个要素，分别是变形后的行索引、需要转到列索引的列，以及这些列和行索引对应的数值，它们分别对应了pivot方法中的index, columns, values参数。新生成表的列索引是columns对应列的unique值，而新表的行索引是index对应列的unique值，而values对应了想要展示的数值列。

In [5]python · cell 9

python

df.pivot(index='Name', columns='Subject', values='Grade')

Output

Subject    Chinese  Math
Name
San Zhang       80    75
Si Li           90    85

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead th { text-align: right; }

Subject	Chinese	Math
Name
San Zhang	80	75
Si Li	90	85

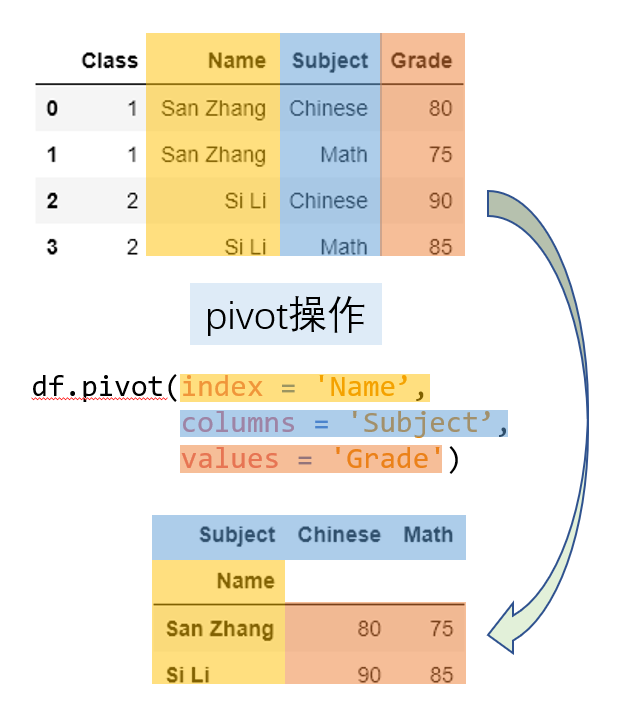

通过颜色的标记，更容易地能够理解其变形的过程：

利用pivot进行变形操作需要满足唯一性的要求，即由于在新表中的行列索引对应了唯一的value，因此原表中的index和columns对应两个列的行组合必须唯一。例如，现在把原表中第二行张三的数学改为语文就会报错，这是由于Name与Subject的组合中两次出现("San Zhang", "Chinese")，从而最后不能够确定到底变形后应该是填写80分还是75分。

In [6]python · cell 12

python

df.loc[1, 'Subject'] = 'Chinese'
try:
    df.pivot(index='Name', columns='Subject', values='Grade')
except Exception as e:
    Err_Msg = e
Err_Msg

Output

ValueError('Index contains duplicate entries, cannot reshape')

pandas从1.1.0开始，pivot相关的三个参数允许被设置为列表，这也意味着会返回多级索引。这里构造一个相应的例子来说明如何使用：下表中六列分别为班级、姓名、测试类型（期中考试和期末考试）、科目、成绩、排名。

In [7]python · cell 14

python

df = pd.DataFrame({'Class':[1, 1, 2, 2, 1, 1, 2, 2],
                   'Name':['San Zhang', 'San Zhang', 'Si Li', 'Si Li',
                              'San Zhang', 'San Zhang', 'Si Li', 'Si Li'],
                   'Examination': ['Mid', 'Final', 'Mid', 'Final',
                                    'Mid', 'Final', 'Mid', 'Final'],
                   'Subject':['Chinese', 'Chinese', 'Chinese', 'Chinese',
                                 'Math', 'Math', 'Math', 'Math'],
                   'Grade':[80, 75, 85, 65, 90, 85, 92, 88],
                   'rank':[10, 15, 21, 15, 20, 7, 6, 2]})
df

Output

   Class       Name Examination  Subject  Grade  rank
0      1  San Zhang         Mid  Chinese     80    10
1      1  San Zhang       Final  Chinese     75    15
2      2      Si Li         Mid  Chinese     85    21
3      2      Si Li       Final  Chinese     65    15
4      1  San Zhang         Mid     Math     90    20
5      1  San Zhang       Final     Math     85     7
6      2      Si Li         Mid     Math     92     6
7      2      Si Li       Final     Math     88     2

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead th { text-align: right; }

	Class	Name	Examination	Subject	Grade	rank
0	1	San Zhang	Mid	Chinese	80	10
1	1	San Zhang	Final	Chinese	75	15
2	2	Si Li	Mid	Chinese	85	21
3	2	Si Li	Final	Chinese	65	15
4	1	San Zhang	Mid	Math	90	20
5	1	San Zhang	Final	Math	85	7
6	2	Si Li	Mid	Math	92	6
7	2	Si Li	Final	Math	88	2

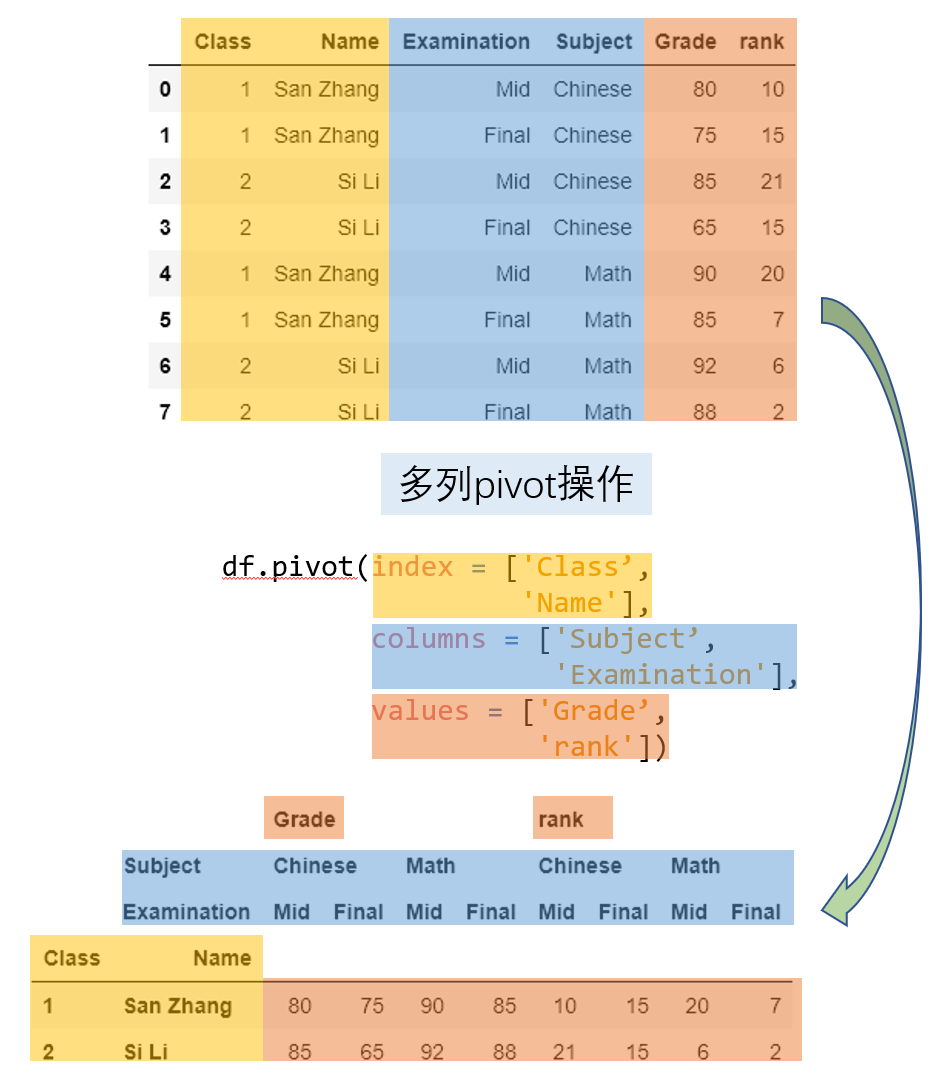

现在想要把测试类型和科目联合组成的四个类别（期中语文、期末语文、期中数学、期末数学）转到列索引，并且同时统计成绩和排名：

In [8]python · cell 16

python

pivot_multi = df.pivot(index = ['Class', 'Name'],
                       columns = ['Subject','Examination'],
                       values = ['Grade','rank'])
pivot_multi

Output

                  Grade                     rank
Subject         Chinese       Math       Chinese       Math
Examination         Mid Final  Mid Final     Mid Final  Mid Final
Class Name
1     San Zhang      80    75   90    85      10    15   20     7
2     Si Li          85    65   92    88      21    15    6     2

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead tr th { text-align: left; } .dataframe thead tr:last-of-type th { text-align: right; }

		Grade				rank
	Subject	Chinese		Math		Chinese		Math
	Examination	Mid	Final	Mid	Final	Mid	Final	Mid	Final
Class	Name
1	San Zhang	80	75	90	85	10	15	20	7
2	Si Li	85	65	92	88	21	15	6	2

根据唯一性原则，新表的行索引等价于对index中的多列使用drop_duplicates，而列索引的长度为values中的元素个数乘以columns的唯一组合数量（与index类似）。从下面的示意图中能够比较容易地理解相应的操作：

2. pivot_table

pivot的使用依赖于唯一性条件，那如果不满足唯一性条件，那么必须通过聚合操作使得相同行列组合对应的多个值变为一个值。例如，张三和李四都参加了两次语文考试和数学考试，按照学院规定，最后的成绩是两次考试分数的平均值，此时就无法通过pivot函数来完成。

In [9]python · cell 18

python

df = pd.DataFrame({'Name':['San Zhang', 'San Zhang',
                              'San Zhang', 'San Zhang',
                              'Si Li', 'Si Li', 'Si Li', 'Si Li'],
                   'Subject':['Chinese', 'Chinese', 'Math', 'Math',
                                 'Chinese', 'Chinese', 'Math', 'Math'],
                   'Grade':[80, 90, 100, 90, 70, 80, 85, 95]})
df

Output

        Name  Subject  Grade
0  San Zhang  Chinese     80
1  San Zhang  Chinese     90
2  San Zhang     Math    100
3  San Zhang     Math     90
4      Si Li  Chinese     70
5      Si Li  Chinese     80
6      Si Li     Math     85
7      Si Li     Math     95

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead th { text-align: right; }

	Name	Subject	Grade
0	San Zhang	Chinese	80
1	San Zhang	Chinese	90
2	San Zhang	Math	100
3	San Zhang	Math	90
4	Si Li	Chinese	70
5	Si Li	Chinese	80
6	Si Li	Math	85
7	Si Li	Math	95

pandas中提供了pivot_table来实现，其中的aggfunc参数就是使用的聚合函数。上述场景可以如下写出：

In [10]python · cell 20

python

df.pivot_table(index = 'Name',
               columns = 'Subject',
               values = 'Grade',
               aggfunc = 'mean')

Output

Subject    Chinese  Math
Name
San Zhang       85    95
Si Li           75    90

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead th { text-align: right; }

Subject	Chinese	Math
Name
San Zhang	85	95
Si Li	75	90

这里传入aggfunc包含了上一章中介绍的所有合法聚合字符串，此外还可以传入以序列为输入标量为输出的聚合函数来实现自定义操作，上述功能可以等价写出：

In [11]python · cell 22

python

df.pivot_table(index = 'Name',
               columns = 'Subject',
               values = 'Grade',
               aggfunc = lambda x:x.mean())

Output

Subject    Chinese  Math
Name
San Zhang       85    95
Si Li           75    90

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead th { text-align: right; }

Subject	Chinese	Math
Name
San Zhang	85	95
Si Li	75	90

此外，pivot_table具有边际汇总的功能，可以通过设置margins=True来实现，其中边际的聚合方式与aggfunc中给出的聚合方法一致。下面就分别统计了语文均分和数学均分、张三均分和李四均分，以及总体所有分数的均分：

In [12]python · cell 24

python

df.pivot_table(index = 'Name',
               columns = 'Subject',
               values = 'Grade',
               aggfunc='mean',
               margins=True)

Output

Subject    Chinese  Math    All
Name
San Zhang       85  95.0  90.00
Si Li           75  90.0  82.50
All             80  92.5  86.25

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead th { text-align: right; }

Subject	Chinese	Math	All
Name
San Zhang	85	95.0	90.00
Si Li	75	90.0	82.50
All	80	92.5	86.25

【练一练】

在上面的边际汇总例子中，行或列的汇总为新表中行元素或者列元素的平均值，而总体的汇总为新表中四个元素的平均值。这种关系一定成立吗？若不成立，请给出一个例子来说明。

【END】

3. melt

长宽表只是数据呈现方式的差异，但其包含的信息量是等价的，前面提到了利用pivot把长表转为宽表，那么就可以通过相应的逆操作把宽表转为长表，melt函数就起到了这样的作用。在下面的例子中，Subject以列索引的形式存储，现在想要将其压缩到一个列中。

In [13]python · cell 26

python

df = pd.DataFrame({'Class':[1,2],
                   'Name':['San Zhang', 'Si Li'],
                   'Chinese':[80, 90],
                   'Math':[80, 75]})
df

Output

   Class       Name  Chinese  Math
0      1  San Zhang       80    80
1      2      Si Li       90    75

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead th { text-align: right; }

	Class	Name	Chinese	Math
0	1	San Zhang	80	80
1	2	Si Li	90	75

In [14]python · cell 27

python

df_melted = df.melt(id_vars = ['Class', 'Name'],
                    value_vars = ['Chinese', 'Math'],
                    var_name = 'Subject',
                    value_name = 'Grade')
df_melted

Output

   Class       Name  Subject  Grade
0      1  San Zhang  Chinese     80
1      2      Si Li  Chinese     90
2      1  San Zhang     Math     80
3      2      Si Li     Math     75

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead th { text-align: right; }

	Class	Name	Subject	Grade
0	1	San Zhang	Chinese	80
1	2	Si Li	Chinese	90
2	1	San Zhang	Math	80
3	2	Si Li	Math	75

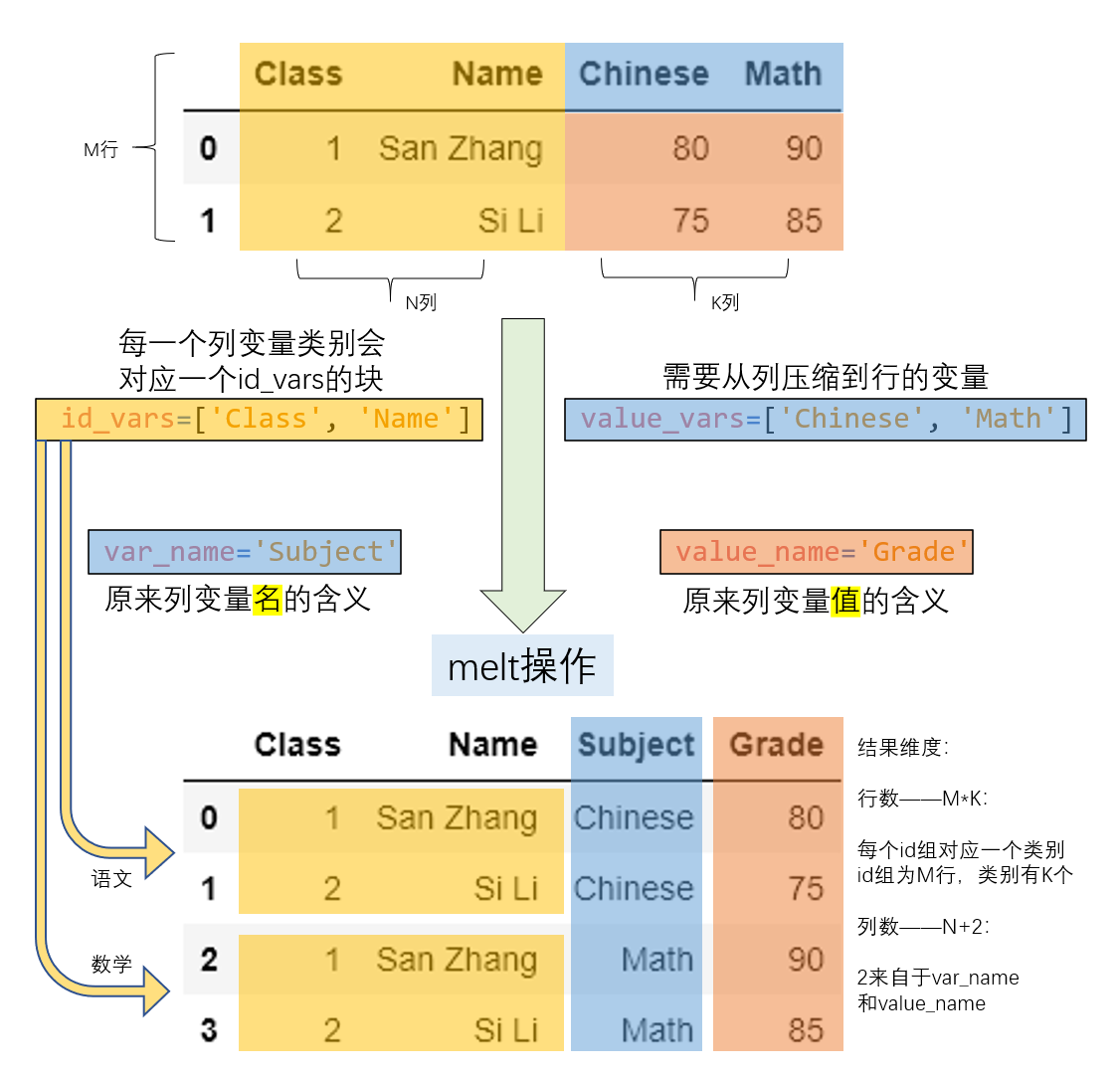

melt的主要参数和压缩的过程如下图所示：

前面提到了melt和pivot是一组互逆过程，那么就一定可以通过pivot操作把df_melted转回df的形式：

In [15]python · cell 29

python

df_unmelted = df_melted.pivot(index = ['Class', 'Name'],
                              columns='Subject',
                              values='Grade')
df_unmelted # 下面需要恢复索引，并且重命名列索引名称

Output

Subject          Chinese  Math
Class Name
1     San Zhang       80    80
2     Si Li           90    75

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead th { text-align: right; }

	Subject	Chinese	Math
Class	Name
1	San Zhang	80	80
2	Si Li	90	75

In [16]python · cell 30

python

df_unmelted = df_unmelted.reset_index().rename_axis(columns={'Subject':''})
df_unmelted.equals(df)

Output

True

4. wide_to_long

melt方法中，在列索引中被压缩的一组值对应的列元素只能代表同一层次的含义，即values_name。现在如果列中包含了交叉类别，比如期中期末的类别和语文数学的类别，那么想要把values_name对应的Grade扩充为两列分别对应语文分数和数学分数，只把期中期末的信息压缩，这种需求下就要使用wide_to_long函数来完成。

In [17]python · cell 32

python

df = pd.DataFrame({'Class':[1,2],'Name':['San Zhang', 'Si Li'],
                   'Chinese_Mid':[80, 75], 'Math_Mid':[90, 85],
                   'Chinese_Final':[80, 75], 'Math_Final':[90, 85]})
df

Output

   Class       Name  Chinese_Mid  Math_Mid  Chinese_Final  Math_Final
0      1  San Zhang           80        90             80          90
1      2      Si Li           75        85             75          85

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead th { text-align: right; }

	Class	Name	Chinese_Mid	Math_Mid	Chinese_Final	Math_Final
0	1	San Zhang	80	90	80	90
1	2	Si Li	75	85	75	85

In [18]python · cell 33

python

pd.wide_to_long(df,
                stubnames=['Chinese', 'Math'],
                i = ['Class', 'Name'],
                j='Examination',
                sep='_',
                suffix='.+')

Output

                             Chinese  Math
Class Name      Examination
1     San Zhang Mid               80    90
                Final             80    90
2     Si Li     Mid               75    85
                Final             75    85

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead th { text-align: right; }

			Chinese	Math
Class	Name	Examination
1	San Zhang	Mid	80	90
1	San Zhang	Final	80	90
2	Si Li	Mid	75	85
2	Si Li	Final	75	85

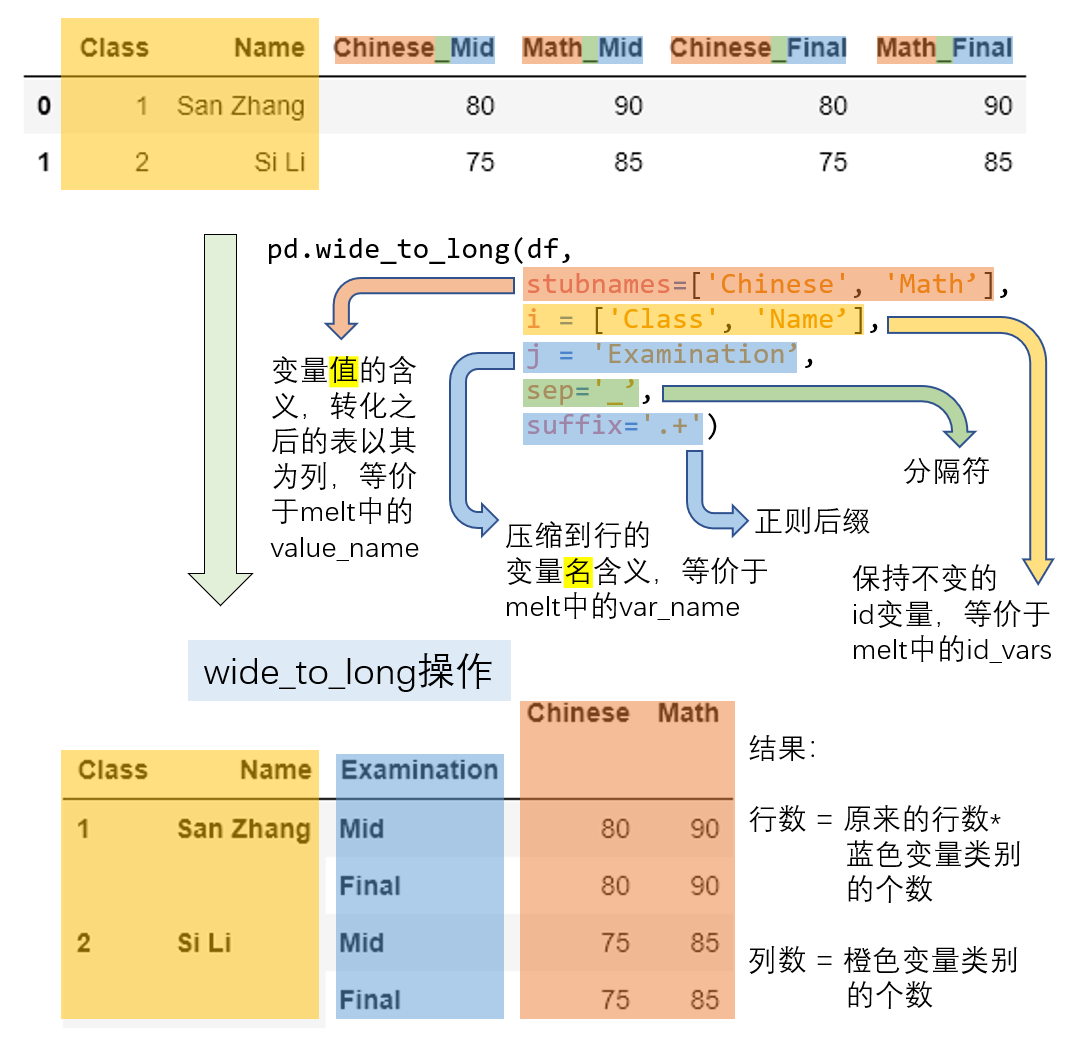

具体的变换过程由下图进行展示，属相同概念的元素使用了一致的颜色标出：

下面给出一个比较复杂的案例，把之前在pivot一节中多列操作的结果（产生了多级索引），利用wide_to_long函数，将其转为原来的形态。其中，使用了第八章的str.split函数，目前暂时只需将其理解为对序列按照某个分隔符进行拆分即可。

In [19]python · cell 35

python

res = pivot_multi.copy()
res.columns = res.columns.map(lambda x:'_'.join(x))
res = res.reset_index()
res = pd.wide_to_long(res, stubnames=['Grade', 'rank'],
                           i = ['Class', 'Name'],
                           j = 'Subject_Examination',
                           sep = '_',
                           suffix = '.+')
res

Output

                                     Grade  rank
Class Name      Subject_Examination
1     San Zhang Chinese_Mid             80    10
                Chinese_Final           75    15
                Math_Mid                90    20
                Math_Final              85     7
2     Si Li     Chinese_Mid             85    21
                Chinese_Final           65    15
                Math_Mid                92     6
                Math_Final              88     2

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead th { text-align: right; }

			Grade	rank
Class	Name	Subject_Examination
1	San Zhang	Chinese_Mid	80	10
		Chinese_Final	75	15
		Math_Mid	90	20
		Math_Final	85	7
2	Si Li	Chinese_Mid	85	21
		Chinese_Final	65	15
		Math_Mid	92	6
		Math_Final	88	2

In [20]python · cell 36

python

res = res.reset_index()
res[['Subject', 'Examination']] = res['Subject_Examination'].str.split('_', expand=True)
res = res[['Class', 'Name', 'Examination', 'Subject', 'Grade', 'rank']].sort_values('Subject')
res = res.reset_index(drop=True)
res

Output

   Class       Name Examination  Subject  Grade  rank
0      1  San Zhang         Mid  Chinese     80    10
1      1  San Zhang       Final  Chinese     75    15
2      2      Si Li         Mid  Chinese     85    21
3      2      Si Li       Final  Chinese     65    15
4      1  San Zhang         Mid     Math     90    20
5      1  San Zhang       Final     Math     85     7
6      2      Si Li         Mid     Math     92     6
7      2      Si Li       Final     Math     88     2

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead th { text-align: right; }

	Class	Name	Examination	Subject	Grade	rank
0	1	San Zhang	Mid	Chinese	80	10
1	1	San Zhang	Final	Chinese	75	15
2	2	Si Li	Mid	Chinese	85	21
3	2	Si Li	Final	Chinese	65	15
4	1	San Zhang	Mid	Math	90	20
5	1	San Zhang	Final	Math	85	7
6	2	Si Li	Mid	Math	92	6
7	2	Si Li	Final	Math	88	2

二、索引的变形

1. stack与unstack

在第二章中提到了利用swaplevel或者reorder_levels进行索引内部的层交换，下面就要讨论 $\color{red}{行列索引之间}$ 的交换，由于这种交换带来了DataFrame维度上的变化，因此属于变形操作。在第一节中提到的4种变形函数与其不同之处在于，它们都属于某一列或几列 $\color{red}{元素}$ 和 $\color{red}{列索引}$ 之间的转换，而不是索引之间的转换。

unstack函数的作用是把行索引转为列索引，例如下面这个简单的例子：

In [21]python · cell 38

python

df = pd.DataFrame(np.ones((4,2)),
                  index = pd.Index([('A', 'cat', 'big'),
                                    ('A', 'dog', 'small'),
                                    ('B', 'cat', 'big'),
                                    ('B', 'dog', 'small')]),
                  columns=['col_1', 'col_2'])
df

Output

             col_1  col_2
A cat big      1.0    1.0
  dog small    1.0    1.0
B cat big      1.0    1.0
  dog small    1.0    1.0

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead th { text-align: right; }

			col_1	col_2
A	cat	big	1.0	1.0
A	dog	small	1.0	1.0
B	cat	big	1.0	1.0
B	dog	small	1.0	1.0

In [22]python · cell 39

python

df.unstack()

Output

      col_1       col_2
        big small   big small
A cat   1.0   NaN   1.0   NaN
  dog   NaN   1.0   NaN   1.0
B cat   1.0   NaN   1.0   NaN
  dog   NaN   1.0   NaN   1.0

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead tr th { text-align: left; }

		col_1		col_2
		big	small	big	small
A	cat	1.0	NaN	1.0	NaN
A	dog	NaN	1.0	NaN	1.0
B	cat	1.0	NaN	1.0	NaN
B	dog	NaN	1.0	NaN	1.0

unstack的主要参数是移动的层号，默认转化最内层，移动到列索引的最内层，同时支持同时转化多个层：

In [23]python · cell 41

python

df.unstack(2)

Output

      col_1       col_2
        big small   big small
A cat   1.0   NaN   1.0   NaN
  dog   NaN   1.0   NaN   1.0
B cat   1.0   NaN   1.0   NaN
  dog   NaN   1.0   NaN   1.0

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead tr th { text-align: left; }

		col_1		col_2
		big	small	big	small
A	cat	1.0	NaN	1.0	NaN
A	dog	NaN	1.0	NaN	1.0
B	cat	1.0	NaN	1.0	NaN
B	dog	NaN	1.0	NaN	1.0

In [24]python · cell 42

python

df.unstack([0,2])

Output

    col_1                  col_2
        A          B           A          B
      big small  big small   big small  big small
cat   1.0   NaN  1.0   NaN   1.0   NaN  1.0   NaN
dog   NaN   1.0  NaN   1.0   NaN   1.0  NaN   1.0

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead tr th { text-align: left; }

	col_1				col_2
	A		B		A		B
	big	small	big	small	big	small	big	small
cat	1.0	NaN	1.0	NaN	1.0	NaN	1.0	NaN
dog	NaN	1.0	NaN	1.0	NaN	1.0	NaN	1.0

类似于pivot中的唯一性要求，在unstack中必须保证 $\color{red}{被转为列索引的行索引层}$ 和 $\color{red}{被保留的行索引层}$ 构成的组合是唯一的，例如把前两个列索引改成相同的破坏唯一性，那么就会报错：

In [25]python · cell 44

python

my_index = df.index.to_list()
my_index[1] = my_index[0]
df.index = pd.Index(my_index)
df

Output

             col_1  col_2
A cat big      1.0    1.0
      big      1.0    1.0
B cat big      1.0    1.0
  dog small    1.0    1.0

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead th { text-align: right; }

			col_1	col_2
A	cat	big	1.0	1.0
A	cat	big	1.0	1.0
B	cat	big	1.0	1.0
B	dog	small	1.0	1.0

In [26]python · cell 45

python

try:
    df.unstack()
except Exception as e:
    Err_Msg = e
Err_Msg

Output

ValueError('Index contains duplicate entries, cannot reshape')

与unstack相反，stack的作用就是把列索引的层压入行索引，其用法完全类似。

In [27]python · cell 47

python

df = pd.DataFrame(np.ones((4,2)),
                  index = pd.Index([('A', 'cat', 'big'),
                                    ('A', 'dog', 'small'),
                                    ('B', 'cat', 'big'),
                                    ('B', 'dog', 'small')]),
                  columns=['index_1', 'index_2']).T
df

Output

           A          B
         cat   dog  cat   dog
         big small  big small
index_1  1.0   1.0  1.0   1.0
index_2  1.0   1.0  1.0   1.0

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead tr th { text-align: left; }

	A		B
	cat	dog	cat	dog
	big	small	big	small
index_1	1.0	1.0	1.0	1.0
index_2	1.0	1.0	1.0	1.0

In [28]python · cell 48

python

df.stack()

Output

                 A         B
               cat  dog  cat  dog
index_1 big    1.0  NaN  1.0  NaN
        small  NaN  1.0  NaN  1.0
index_2 big    1.0  NaN  1.0  NaN
        small  NaN  1.0  NaN  1.0

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead tr th { text-align: left; }

		A		B
		cat	dog	cat	dog
index_1	big	1.0	NaN	1.0	NaN
index_1	small	NaN	1.0	NaN	1.0
index_2	big	1.0	NaN	1.0	NaN
index_2	small	NaN	1.0	NaN	1.0

In [29]python · cell 49

python

df.stack([1, 2])

Output

                     A    B
index_1 cat big    1.0  1.0
        dog small  1.0  1.0
index_2 cat big    1.0  1.0
        dog small  1.0  1.0

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead th { text-align: right; }

			A	B
index_1	cat	big	1.0	1.0
index_1	dog	small	1.0	1.0
index_2	cat	big	1.0	1.0
index_2	dog	small	1.0	1.0

2. 聚合与变形的关系

在上面介绍的所有函数中，除了带有聚合效果的pivot_table以外，所有的函数在变形前后并不会带来values个数的改变，只是这些值在呈现的形式上发生了变化。在上一章讨论的分组聚合操作，由于生成了新的行列索引，因此必然也属于某种特殊的变形操作，但由于聚合之后把原来的多个值变为了一个值，因此values的个数产生了变化，这也是分组聚合与变形函数的最大区别。

三、其他变形函数

1. crosstab

crosstab是一个地位尴尬的函数，因为它能实现的所有功能pivot_table都能完成。在默认状态下，crosstab可以统计元素组合出现的频数，即count操作。例如统计learn_pandas数据集中学校和转系情况对应的频数：

In [30]python · cell 51

python

df = pd.read_csv('../data/learn_pandas.csv')
pd.crosstab(index = df.School, columns = df.Transfer)

Output

Transfer                        N  Y
School
Fudan University               38  1
Peking University              28  2
Shanghai Jiao Tong University  53  0
Tsinghua University            62  4

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead th { text-align: right; }

Transfer	N	Y
School
Fudan University	38	1
Peking University	28	2
Shanghai Jiao Tong University	53	0
Tsinghua University	62	4

这等价于如下crosstab的如下写法，这里的aggfunc即聚合参数：

In [31]python · cell 53

python

pd.crosstab(index = df.School, columns = df.Transfer, values = [0]*df.shape[0], aggfunc = 'count')

Output

Transfer                          N    Y
School
Fudan University               38.0  1.0
Peking University              28.0  2.0
Shanghai Jiao Tong University  53.0  NaN
Tsinghua University            62.0  4.0

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead th { text-align: right; }

Transfer	N	Y
School
Fudan University	38.0	1.0
Peking University	28.0	2.0
Shanghai Jiao Tong University	53.0	NaN
Tsinghua University	62.0	4.0

同样，可以利用pivot_table进行等价操作，由于这里统计的是组合的频数，因此values参数无论传入哪一个列都不会影响最后的结果：

In [32]python · cell 55

python

df.pivot_table(index = 'School',
               columns = 'Transfer',
               values = 'Name',
               aggfunc = 'count')

Output

Transfer                          N    Y
School
Fudan University               38.0  1.0
Peking University              28.0  2.0
Shanghai Jiao Tong University  53.0  NaN
Tsinghua University            62.0  4.0

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead th { text-align: right; }

Transfer	N	Y
School
Fudan University	38.0	1.0
Peking University	28.0	2.0
Shanghai Jiao Tong University	53.0	NaN
Tsinghua University	62.0	4.0

从上面可以看出这两个函数的区别在于，crosstab的对应位置传入的是具体的序列，而pivot_table传入的是被调用表对应的名字，若传入序列对应的值则会报错。

除了默认状态下的count统计，所有的聚合字符串和返回标量的自定义函数都是可用的，例如统计对应组合的身高均值：

In [33]python · cell 57

python

pd.crosstab(index = df.School, columns = df.Transfer, values = df.Height, aggfunc = 'mean')

Output

Transfer                                N       Y
School
Fudan University               162.043750  177.20
Peking University              163.429630  162.40
Shanghai Jiao Tong University  163.953846     NaN
Tsinghua University            163.253571  164.55

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead th { text-align: right; }

Transfer	N	Y
School
Fudan University	162.043750	177.20
Peking University	163.429630	162.40
Shanghai Jiao Tong University	163.953846	NaN
Tsinghua University	163.253571	164.55

2. explode

explode参数能够对某一列的元素进行纵向的展开，被展开的单元格必须存储list, tuple, Series, np.ndarray中的一种类型。

In [34]python · cell 59

python

df_ex = pd.DataFrame({'A': [[1, 2], 'my_str', {1, 2}, pd.Series([3, 4])],
                      'B': 1})
df_ex

Output

                            A  B
0                      [1, 2]  1
1                      my_str  1
2                      {1, 2}  1
3  0    3
1    4
dtype: int64  1

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead th { text-align: right; }

	A	B
0	[1, 2]	1
1	my_str	1
2	{1, 2}	1
3	0 3 1 4 dtype: int64	1

In [35]python · cell 60

python

df_ex.explode('A')

Output

        A  B
0       1  1
0       2  1
1  my_str  1
2       1  1
2       2  1
3       3  1
3       4  1

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead th { text-align: right; }

	A	B
0	1	1
0	2	1
1	my_str	1
2	1	1
2	2	1
3	3	1
3	4	1

3. get_dummies

get_dummies是用于特征构建的重要函数之一，其作用是把类别特征转为指示变量。例如，对年级一列转为指示变量，属于某一个年级的对应列标记为1，否则为0：

In [36]python · cell 62

python

pd.get_dummies(df.Grade).head()

Output

   Freshman  Junior  Senior  Sophomore
0         1       0       0          0
1         1       0       0          0
2         0       0       1          0
3         0       0       0          1
4         0       0       0          1

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead th { text-align: right; }

	Freshman	Senior	Sophomore
0	1	0	0
1	1	0	0
2	0	1	0
3	0	0	1
4	0	0	1

四、练习

Ex1：美国非法药物数据集

现有一份关于美国非法药物的数据集，其中SubstanceName, DrugReports分别指药物名称和报告数量：

In [37]python · cell 64

python

df = pd.read_csv('../data/drugs.csv').sort_values(['State','COUNTY','SubstanceName'],ignore_index=True)
df.head(3)

Output

   YYYY State COUNTY  SubstanceName  DrugReports
0  2011    KY  ADAIR  Buprenorphine            3
1  2012    KY  ADAIR  Buprenorphine            5
2  2013    KY  ADAIR  Buprenorphine            4

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead th { text-align: right; }

	YYYY	State	COUNTY	SubstanceName	DrugReports
0	2011	KY	ADAIR	Buprenorphine	3
1	2012	KY	ADAIR	Buprenorphine	5
2	2013	KY	ADAIR	Buprenorphine	4

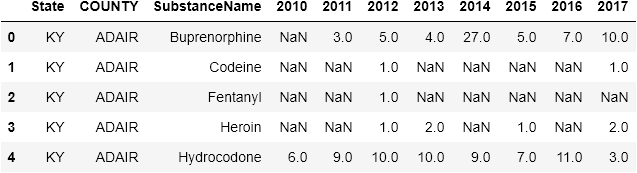

将数据转为如下的形式：

将第1问中的结果恢复为原表。
按State分别统计每年的报告数量总和，其中State, YYYY分别为列索引和行索引，要求分别使用pivot_table函数与groupby+unstack两种不同的策略实现，并体会它们之间的联系。

Ex2：特殊的wide_to_long方法

从功能上看，melt方法应当属于wide_to_long的一种特殊情况，即stubnames只有一类。请使用wide_to_long生成melt一节中的df_melted。（提示：对列名增加适当的前缀）

In [38]python · cell 67

python

df = pd.DataFrame({'Class':[1,2],
                   'Name':['San Zhang', 'Si Li'],
                   'Chinese':[80, 90],
                   'Math':[80, 75]})
df

Output

   Class       Name  Chinese  Math
0      1  San Zhang       80    80
1      2      Si Li       90    75

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead th { text-align: right; }

	Class	Name	Chinese	Math
0	1	San Zhang	80	80
1	2	Si Li	90	75

Chapter 10

一、长宽表的变形

NotebookPyCharm (pythonProject)67 cells

In [1]python · cell 2

python

import numpy as np
import pandas as pd

一、长宽表的变形

In [2]python · cell 4

python

pd.DataFrame({'Gender':['F','F','M','M'], 'Height':[163, 160, 175, 180]})

Output

  Gender  Height
0      F     163
1      F     160
2      M     175
3      M     180

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead th { text-align: right; }

	Gender	Height
0	F	163
1	F	160
2	M	175
3	M	180

In [3]python · cell 5

python

pd.DataFrame({'Height: F':[163, 160], 'Height: M':[175, 180]})

Output

   Height: F  Height: M
0        163        175
1        160        180

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead th { text-align: right; }

	Height: F	Height: M
0	163	175
1	160	180

1. pivot

pivot是一种典型的长表变宽表的函数，首先来看一个例子：下表存储了张三和李四的语文和数学分数，现在想要把语文和数学分数作为列来展示。

In [4]python · cell 7

python

df = pd.DataFrame({'Class':[1,1,2,2],
                   'Name':['San Zhang','San Zhang','Si Li','Si Li'],
                   'Subject':['Chinese','Math','Chinese','Math'],
                   'Grade':[80,75,90,85]})
df

Output

   Class       Name  Subject  Grade
0      1  San Zhang  Chinese     80
1      1  San Zhang     Math     75
2      2      Si Li  Chinese     90
3      2      Si Li     Math     85

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead th { text-align: right; }

	Class	Name	Subject	Grade
0	1	San Zhang	Chinese	80
1	1	San Zhang	Math	75
2	2	Si Li	Chinese	90
3	2	Si Li	Math	85

In [5]python · cell 9

python

df.pivot(index='Name', columns='Subject', values='Grade')

Output

Subject    Chinese  Math
Name
San Zhang       80    75
Si Li           90    85

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead th { text-align: right; }

Subject	Chinese	Math
Name
San Zhang	80	75
Si Li	90	85

通过颜色的标记，更容易地能够理解其变形的过程：

In [6]python · cell 12

python

df.loc[1, 'Subject'] = 'Chinese'
try:
    df.pivot(index='Name', columns='Subject', values='Grade')
except Exception as e:
    Err_Msg = e
Err_Msg

Output

ValueError('Index contains duplicate entries, cannot reshape')

In [7]python · cell 14

python

df = pd.DataFrame({'Class':[1, 1, 2, 2, 1, 1, 2, 2],
                   'Name':['San Zhang', 'San Zhang', 'Si Li', 'Si Li',
                              'San Zhang', 'San Zhang', 'Si Li', 'Si Li'],
                   'Examination': ['Mid', 'Final', 'Mid', 'Final',
                                    'Mid', 'Final', 'Mid', 'Final'],
                   'Subject':['Chinese', 'Chinese', 'Chinese', 'Chinese',
                                 'Math', 'Math', 'Math', 'Math'],
                   'Grade':[80, 75, 85, 65, 90, 85, 92, 88],
                   'rank':[10, 15, 21, 15, 20, 7, 6, 2]})
df

Output

   Class       Name Examination  Subject  Grade  rank
0      1  San Zhang         Mid  Chinese     80    10
1      1  San Zhang       Final  Chinese     75    15
2      2      Si Li         Mid  Chinese     85    21
3      2      Si Li       Final  Chinese     65    15
4      1  San Zhang         Mid     Math     90    20
5      1  San Zhang       Final     Math     85     7
6      2      Si Li         Mid     Math     92     6
7      2      Si Li       Final     Math     88     2

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead th { text-align: right; }

	Class	Name	Examination	Subject	Grade	rank
0	1	San Zhang	Mid	Chinese	80	10
1	1	San Zhang	Final	Chinese	75	15
2	2	Si Li	Mid	Chinese	85	21
3	2	Si Li	Final	Chinese	65	15
4	1	San Zhang	Mid	Math	90	20
5	1	San Zhang	Final	Math	85	7
6	2	Si Li	Mid	Math	92	6
7	2	Si Li	Final	Math	88	2

现在想要把测试类型和科目联合组成的四个类别（期中语文、期末语文、期中数学、期末数学）转到列索引，并且同时统计成绩和排名：

In [8]python · cell 16

python

pivot_multi = df.pivot(index = ['Class', 'Name'],
                       columns = ['Subject','Examination'],
                       values = ['Grade','rank'])
pivot_multi

Output

                  Grade                     rank
Subject         Chinese       Math       Chinese       Math
Examination         Mid Final  Mid Final     Mid Final  Mid Final
Class Name
1     San Zhang      80    75   90    85      10    15   20     7
2     Si Li          85    65   92    88      21    15    6     2

		Grade				rank
	Subject	Chinese		Math		Chinese		Math
	Examination	Mid	Final	Mid	Final	Mid	Final	Mid	Final
Class	Name
1	San Zhang	80	75	90	85	10	15	20	7
2	Si Li	85	65	92	88	21	15	6	2

2. pivot_table

In [9]python · cell 18

python

df = pd.DataFrame({'Name':['San Zhang', 'San Zhang',
                              'San Zhang', 'San Zhang',
                              'Si Li', 'Si Li', 'Si Li', 'Si Li'],
                   'Subject':['Chinese', 'Chinese', 'Math', 'Math',
                                 'Chinese', 'Chinese', 'Math', 'Math'],
                   'Grade':[80, 90, 100, 90, 70, 80, 85, 95]})
df

Output

        Name  Subject  Grade
0  San Zhang  Chinese     80
1  San Zhang  Chinese     90
2  San Zhang     Math    100
3  San Zhang     Math     90
4      Si Li  Chinese     70
5      Si Li  Chinese     80
6      Si Li     Math     85
7      Si Li     Math     95

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead th { text-align: right; }

	Name	Subject	Grade
0	San Zhang	Chinese	80
1	San Zhang	Chinese	90
2	San Zhang	Math	100
3	San Zhang	Math	90
4	Si Li	Chinese	70
5	Si Li	Chinese	80
6	Si Li	Math	85
7	Si Li	Math	95

pandas中提供了pivot_table来实现，其中的aggfunc参数就是使用的聚合函数。上述场景可以如下写出：

In [10]python · cell 20

python

df.pivot_table(index = 'Name',
               columns = 'Subject',
               values = 'Grade',
               aggfunc = 'mean')

Output

Subject    Chinese  Math
Name
San Zhang       85    95
Si Li           75    90

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead th { text-align: right; }

Subject	Chinese	Math
Name
San Zhang	85	95
Si Li	75	90

In [11]python · cell 22

python

df.pivot_table(index = 'Name',
               columns = 'Subject',
               values = 'Grade',
               aggfunc = lambda x:x.mean())

Output

Subject    Chinese  Math
Name
San Zhang       85    95
Si Li           75    90

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead th { text-align: right; }

Subject	Chinese	Math
Name
San Zhang	85	95
Si Li	75	90

In [12]python · cell 24

python

df.pivot_table(index = 'Name',
               columns = 'Subject',
               values = 'Grade',
               aggfunc='mean',
               margins=True)

Output

Subject    Chinese  Math    All
Name
San Zhang       85  95.0  90.00
Si Li           75  90.0  82.50
All             80  92.5  86.25

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead th { text-align: right; }

Subject	Chinese	Math	All
Name
San Zhang	85	95.0	90.00
Si Li	75	90.0	82.50
All	80	92.5	86.25

【练一练】

【END】

3. melt

In [13]python · cell 26

python

df = pd.DataFrame({'Class':[1,2],
                   'Name':['San Zhang', 'Si Li'],
                   'Chinese':[80, 90],
                   'Math':[80, 75]})
df

Output

   Class       Name  Chinese  Math
0      1  San Zhang       80    80
1      2      Si Li       90    75

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead th { text-align: right; }

	Class	Name	Chinese	Math
0	1	San Zhang	80	80
1	2	Si Li	90	75

In [14]python · cell 27

python

df_melted = df.melt(id_vars = ['Class', 'Name'],
                    value_vars = ['Chinese', 'Math'],
                    var_name = 'Subject',
                    value_name = 'Grade')
df_melted

Output

   Class       Name  Subject  Grade
0      1  San Zhang  Chinese     80
1      2      Si Li  Chinese     90
2      1  San Zhang     Math     80
3      2      Si Li     Math     75

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead th { text-align: right; }

	Class	Name	Subject	Grade
0	1	San Zhang	Chinese	80
1	2	Si Li	Chinese	90
2	1	San Zhang	Math	80
3	2	Si Li	Math	75

melt的主要参数和压缩的过程如下图所示：

前面提到了melt和pivot是一组互逆过程，那么就一定可以通过pivot操作把df_melted转回df的形式：

In [15]python · cell 29

python

df_unmelted = df_melted.pivot(index = ['Class', 'Name'],
                              columns='Subject',
                              values='Grade')
df_unmelted # 下面需要恢复索引，并且重命名列索引名称

Output

Subject          Chinese  Math
Class Name
1     San Zhang       80    80
2     Si Li           90    75

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead th { text-align: right; }

	Subject	Chinese	Math
Class	Name
1	San Zhang	80	80
2	Si Li	90	75

In [16]python · cell 30

python

df_unmelted = df_unmelted.reset_index().rename_axis(columns={'Subject':''})
df_unmelted.equals(df)

Output

True

4. wide_to_long

In [17]python · cell 32

python

df = pd.DataFrame({'Class':[1,2],'Name':['San Zhang', 'Si Li'],
                   'Chinese_Mid':[80, 75], 'Math_Mid':[90, 85],
                   'Chinese_Final':[80, 75], 'Math_Final':[90, 85]})
df

Output

   Class       Name  Chinese_Mid  Math_Mid  Chinese_Final  Math_Final
0      1  San Zhang           80        90             80          90
1      2      Si Li           75        85             75          85

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead th { text-align: right; }

	Class	Name	Chinese_Mid	Math_Mid	Chinese_Final	Math_Final
0	1	San Zhang	80	90	80	90
1	2	Si Li	75	85	75	85

In [18]python · cell 33

python

pd.wide_to_long(df,
                stubnames=['Chinese', 'Math'],
                i = ['Class', 'Name'],
                j='Examination',
                sep='_',
                suffix='.+')

Output

                             Chinese  Math
Class Name      Examination
1     San Zhang Mid               80    90
                Final             80    90
2     Si Li     Mid               75    85
                Final             75    85

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead th { text-align: right; }

			Chinese	Math
Class	Name	Examination
1	San Zhang	Mid	80	90
1	San Zhang	Final	80	90
2	Si Li	Mid	75	85
2	Si Li	Final	75	85

具体的变换过程由下图进行展示，属相同概念的元素使用了一致的颜色标出：

In [19]python · cell 35

python

res = pivot_multi.copy()
res.columns = res.columns.map(lambda x:'_'.join(x))
res = res.reset_index()
res = pd.wide_to_long(res, stubnames=['Grade', 'rank'],
                           i = ['Class', 'Name'],
                           j = 'Subject_Examination',
                           sep = '_',
                           suffix = '.+')
res

Output

                                     Grade  rank
Class Name      Subject_Examination
1     San Zhang Chinese_Mid             80    10
                Chinese_Final           75    15
                Math_Mid                90    20
                Math_Final              85     7
2     Si Li     Chinese_Mid             85    21
                Chinese_Final           65    15
                Math_Mid                92     6
                Math_Final              88     2

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead th { text-align: right; }

			Grade	rank
Class	Name	Subject_Examination
1	San Zhang	Chinese_Mid	80	10
		Chinese_Final	75	15
		Math_Mid	90	20
		Math_Final	85	7
2	Si Li	Chinese_Mid	85	21
		Chinese_Final	65	15
		Math_Mid	92	6
		Math_Final	88	2

In [20]python · cell 36

python

res = res.reset_index()
res[['Subject', 'Examination']] = res['Subject_Examination'].str.split('_', expand=True)
res = res[['Class', 'Name', 'Examination', 'Subject', 'Grade', 'rank']].sort_values('Subject')
res = res.reset_index(drop=True)
res

Output

   Class       Name Examination  Subject  Grade  rank
0      1  San Zhang         Mid  Chinese     80    10
1      1  San Zhang       Final  Chinese     75    15
2      2      Si Li         Mid  Chinese     85    21
3      2      Si Li       Final  Chinese     65    15
4      1  San Zhang         Mid     Math     90    20
5      1  San Zhang       Final     Math     85     7
6      2      Si Li         Mid     Math     92     6
7      2      Si Li       Final     Math     88     2

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead th { text-align: right; }

	Class	Name	Examination	Subject	Grade	rank
0	1	San Zhang	Mid	Chinese	80	10
1	1	San Zhang	Final	Chinese	75	15
2	2	Si Li	Mid	Chinese	85	21
3	2	Si Li	Final	Chinese	65	15
4	1	San Zhang	Mid	Math	90	20
5	1	San Zhang	Final	Math	85	7
6	2	Si Li	Mid	Math	92	6
7	2	Si Li	Final	Math	88	2

二、索引的变形

1. stack与unstack

unstack函数的作用是把行索引转为列索引，例如下面这个简单的例子：

In [21]python · cell 38

python

df = pd.DataFrame(np.ones((4,2)),
                  index = pd.Index([('A', 'cat', 'big'),
                                    ('A', 'dog', 'small'),
                                    ('B', 'cat', 'big'),
                                    ('B', 'dog', 'small')]),
                  columns=['col_1', 'col_2'])
df

Output

             col_1  col_2
A cat big      1.0    1.0
  dog small    1.0    1.0
B cat big      1.0    1.0
  dog small    1.0    1.0

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead th { text-align: right; }

			col_1	col_2
A	cat	big	1.0	1.0
A	dog	small	1.0	1.0
B	cat	big	1.0	1.0
B	dog	small	1.0	1.0

In [22]python · cell 39

python

df.unstack()

Output

      col_1       col_2
        big small   big small
A cat   1.0   NaN   1.0   NaN
  dog   NaN   1.0   NaN   1.0
B cat   1.0   NaN   1.0   NaN
  dog   NaN   1.0   NaN   1.0

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead tr th { text-align: left; }

		col_1		col_2
		big	small	big	small
A	cat	1.0	NaN	1.0	NaN
A	dog	NaN	1.0	NaN	1.0
B	cat	1.0	NaN	1.0	NaN
B	dog	NaN	1.0	NaN	1.0

unstack的主要参数是移动的层号，默认转化最内层，移动到列索引的最内层，同时支持同时转化多个层：

In [23]python · cell 41

python

df.unstack(2)

Output

      col_1       col_2
        big small   big small
A cat   1.0   NaN   1.0   NaN
  dog   NaN   1.0   NaN   1.0
B cat   1.0   NaN   1.0   NaN
  dog   NaN   1.0   NaN   1.0

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead tr th { text-align: left; }

		col_1		col_2
		big	small	big	small
A	cat	1.0	NaN	1.0	NaN
A	dog	NaN	1.0	NaN	1.0
B	cat	1.0	NaN	1.0	NaN
B	dog	NaN	1.0	NaN	1.0

In [24]python · cell 42

python

df.unstack([0,2])

Output

    col_1                  col_2
        A          B           A          B
      big small  big small   big small  big small
cat   1.0   NaN  1.0   NaN   1.0   NaN  1.0   NaN
dog   NaN   1.0  NaN   1.0   NaN   1.0  NaN   1.0

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead tr th { text-align: left; }

	col_1				col_2
	A		B		A		B
	big	small	big	small	big	small	big	small
cat	1.0	NaN	1.0	NaN	1.0	NaN	1.0	NaN
dog	NaN	1.0	NaN	1.0	NaN	1.0	NaN	1.0

In [25]python · cell 44

python

my_index = df.index.to_list()
my_index[1] = my_index[0]
df.index = pd.Index(my_index)
df

Output

             col_1  col_2
A cat big      1.0    1.0
      big      1.0    1.0
B cat big      1.0    1.0
  dog small    1.0    1.0

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead th { text-align: right; }

			col_1	col_2
A	cat	big	1.0	1.0
A	cat	big	1.0	1.0
B	cat	big	1.0	1.0
B	dog	small	1.0	1.0

In [26]python · cell 45

python

try:
    df.unstack()
except Exception as e:
    Err_Msg = e
Err_Msg

Output

ValueError('Index contains duplicate entries, cannot reshape')

与unstack相反，stack的作用就是把列索引的层压入行索引，其用法完全类似。

In [27]python · cell 47

python

df = pd.DataFrame(np.ones((4,2)),
                  index = pd.Index([('A', 'cat', 'big'),
                                    ('A', 'dog', 'small'),
                                    ('B', 'cat', 'big'),
                                    ('B', 'dog', 'small')]),
                  columns=['index_1', 'index_2']).T
df

Output

           A          B
         cat   dog  cat   dog
         big small  big small
index_1  1.0   1.0  1.0   1.0
index_2  1.0   1.0  1.0   1.0

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead tr th { text-align: left; }

	A		B
	cat	dog	cat	dog
	big	small	big	small
index_1	1.0	1.0	1.0	1.0
index_2	1.0	1.0	1.0	1.0

In [28]python · cell 48

python

df.stack()

Output

                 A         B
               cat  dog  cat  dog
index_1 big    1.0  NaN  1.0  NaN
        small  NaN  1.0  NaN  1.0
index_2 big    1.0  NaN  1.0  NaN
        small  NaN  1.0  NaN  1.0

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead tr th { text-align: left; }

		A		B
		cat	dog	cat	dog
index_1	big	1.0	NaN	1.0	NaN
index_1	small	NaN	1.0	NaN	1.0
index_2	big	1.0	NaN	1.0	NaN
index_2	small	NaN	1.0	NaN	1.0

In [29]python · cell 49

python

df.stack([1, 2])

Output

                     A    B
index_1 cat big    1.0  1.0
        dog small  1.0  1.0
index_2 cat big    1.0  1.0
        dog small  1.0  1.0

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead th { text-align: right; }

			A	B
index_1	cat	big	1.0	1.0
index_1	dog	small	1.0	1.0
index_2	cat	big	1.0	1.0
index_2	dog	small	1.0	1.0

2. 聚合与变形的关系

三、其他变形函数

1. crosstab

In [30]python · cell 51

python

df = pd.read_csv('../data/learn_pandas.csv')
pd.crosstab(index = df.School, columns = df.Transfer)

Output

Transfer                        N  Y
School
Fudan University               38  1
Peking University              28  2
Shanghai Jiao Tong University  53  0
Tsinghua University            62  4

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead th { text-align: right; }

Transfer	N	Y
School
Fudan University	38	1
Peking University	28	2
Shanghai Jiao Tong University	53	0
Tsinghua University	62	4

这等价于如下crosstab的如下写法，这里的aggfunc即聚合参数：

In [31]python · cell 53

python

pd.crosstab(index = df.School, columns = df.Transfer, values = [0]*df.shape[0], aggfunc = 'count')

Output

Transfer                          N    Y
School
Fudan University               38.0  1.0
Peking University              28.0  2.0
Shanghai Jiao Tong University  53.0  NaN
Tsinghua University            62.0  4.0

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead th { text-align: right; }

Transfer	N	Y
School
Fudan University	38.0	1.0
Peking University	28.0	2.0
Shanghai Jiao Tong University	53.0	NaN
Tsinghua University	62.0	4.0

同样，可以利用pivot_table进行等价操作，由于这里统计的是组合的频数，因此values参数无论传入哪一个列都不会影响最后的结果：

In [32]python · cell 55

python

df.pivot_table(index = 'School',
               columns = 'Transfer',
               values = 'Name',
               aggfunc = 'count')

Output

Transfer                          N    Y
School
Fudan University               38.0  1.0
Peking University              28.0  2.0
Shanghai Jiao Tong University  53.0  NaN
Tsinghua University            62.0  4.0

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead th { text-align: right; }

Transfer	N	Y
School
Fudan University	38.0	1.0
Peking University	28.0	2.0
Shanghai Jiao Tong University	53.0	NaN
Tsinghua University	62.0	4.0

除了默认状态下的count统计，所有的聚合字符串和返回标量的自定义函数都是可用的，例如统计对应组合的身高均值：

In [33]python · cell 57

python

pd.crosstab(index = df.School, columns = df.Transfer, values = df.Height, aggfunc = 'mean')

Output

Transfer                                N       Y
School
Fudan University               162.043750  177.20
Peking University              163.429630  162.40
Shanghai Jiao Tong University  163.953846     NaN
Tsinghua University            163.253571  164.55

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead th { text-align: right; }

Transfer	N	Y
School
Fudan University	162.043750	177.20
Peking University	163.429630	162.40
Shanghai Jiao Tong University	163.953846	NaN
Tsinghua University	163.253571	164.55

2. explode

explode参数能够对某一列的元素进行纵向的展开，被展开的单元格必须存储list, tuple, Series, np.ndarray中的一种类型。

In [34]python · cell 59

python

df_ex = pd.DataFrame({'A': [[1, 2], 'my_str', {1, 2}, pd.Series([3, 4])],
                      'B': 1})
df_ex

Output

                            A  B
0                      [1, 2]  1
1                      my_str  1
2                      {1, 2}  1
3  0    3
1    4
dtype: int64  1

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead th { text-align: right; }

	A	B
0	[1, 2]	1
1	my_str	1
2	{1, 2}	1
3	0 3 1 4 dtype: int64	1

In [35]python · cell 60

python

df_ex.explode('A')

Output

        A  B
0       1  1
0       2  1
1  my_str  1
2       1  1
2       2  1
3       3  1
3       4  1

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead th { text-align: right; }

	A	B
0	1	1
0	2	1
1	my_str	1
2	1	1
2	2	1
3	3	1
3	4	1

3. get_dummies

In [36]python · cell 62

python

pd.get_dummies(df.Grade).head()

Output

   Freshman  Junior  Senior  Sophomore
0         1       0       0          0
1         1       0       0          0
2         0       0       1          0
3         0       0       0          1
4         0       0       0          1

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead th { text-align: right; }

	Freshman	Senior	Sophomore
0	1	0	0
1	1	0	0
2	0	1	0
3	0	0	1
4	0	0	1

四、练习

Ex1：美国非法药物数据集

现有一份关于美国非法药物的数据集，其中SubstanceName, DrugReports分别指药物名称和报告数量：

In [37]python · cell 64

python

df = pd.read_csv('../data/drugs.csv').sort_values(['State','COUNTY','SubstanceName'],ignore_index=True)
df.head(3)

Output

   YYYY State COUNTY  SubstanceName  DrugReports
0  2011    KY  ADAIR  Buprenorphine            3
1  2012    KY  ADAIR  Buprenorphine            5
2  2013    KY  ADAIR  Buprenorphine            4

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead th { text-align: right; }

	YYYY	State	COUNTY	SubstanceName	DrugReports
0	2011	KY	ADAIR	Buprenorphine	3
1	2012	KY	ADAIR	Buprenorphine	5
2	2013	KY	ADAIR	Buprenorphine	4

将数据转为如下的形式：

将第1问中的结果恢复为原表。
按State分别统计每年的报告数量总和，其中State, YYYY分别为列索引和行索引，要求分别使用pivot_table函数与groupby+unstack两种不同的策略实现，并体会它们之间的联系。

Ex2：特殊的wide_to_long方法

In [38]python · cell 67

python

df = pd.DataFrame({'Class':[1,2],
                   'Name':['San Zhang', 'Si Li'],
                   'Chinese':[80, 90],
                   'Math':[80, 75]})
df

Output

   Class       Name  Chinese  Math
0      1  San Zhang       80    80
1      2      Si Li       90    75

.dataframe tbody tr th:only-of-type { vertical-align: middle; } .dataframe tbody tr th { vertical-align: top; } .dataframe thead th { text-align: right; }

	Class	Name	Chinese	Math
0	1	San Zhang	80	80
1	2	Si Li	90	75
